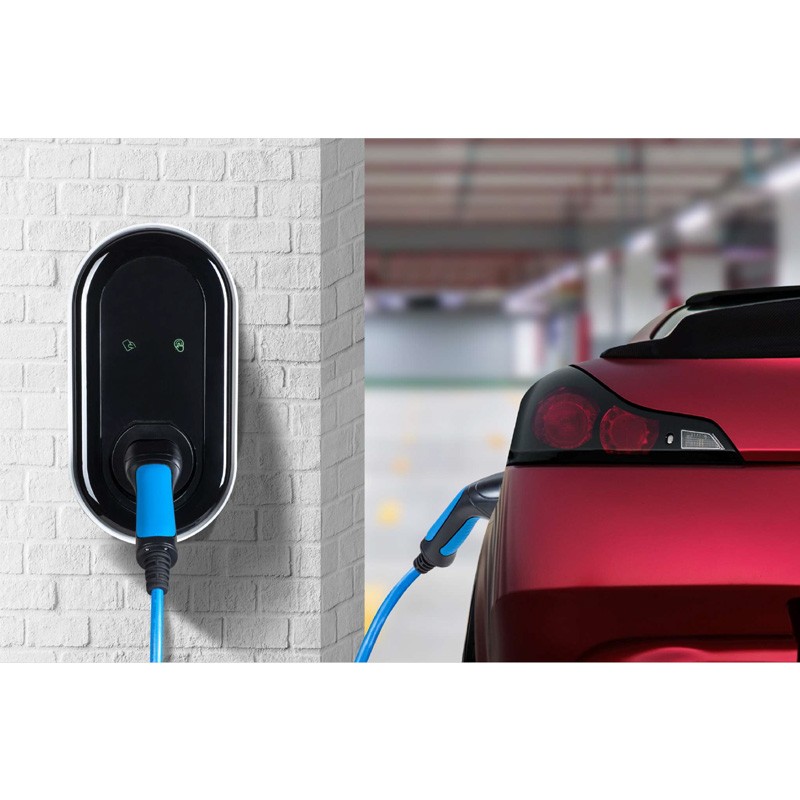

KEVB-202-P

AC Power supply:1P+N+PE/3P+N+PE

Rated Power:7.4KW/11KW/22KW

Rated Voltage:AC230V,50/60Hz/AC 400V,50/60Hz

Rated Current:16A/32A

Charge system:Mode3

Sockets/Plugs:Type 2 Socket, Case B connection Type 2 cableCaseC connection

Indicator Light:3 LED lights

Safety Protection:Over current protection, over voltage protectionundervoltage protection, over temperatureprotection,leakage protection, unconnected PEground protection etc.

RCD:Type B RCD(AC 30mA+DC 6mA) built-in
Operation temperature:-30-55°C
Installation location:Indoor or outdoor, good ventilation, no flammableexplosive gases
Mounting:Wall-mounted or pole-mounted(mounting pole is optional)

IP-class:IP55
